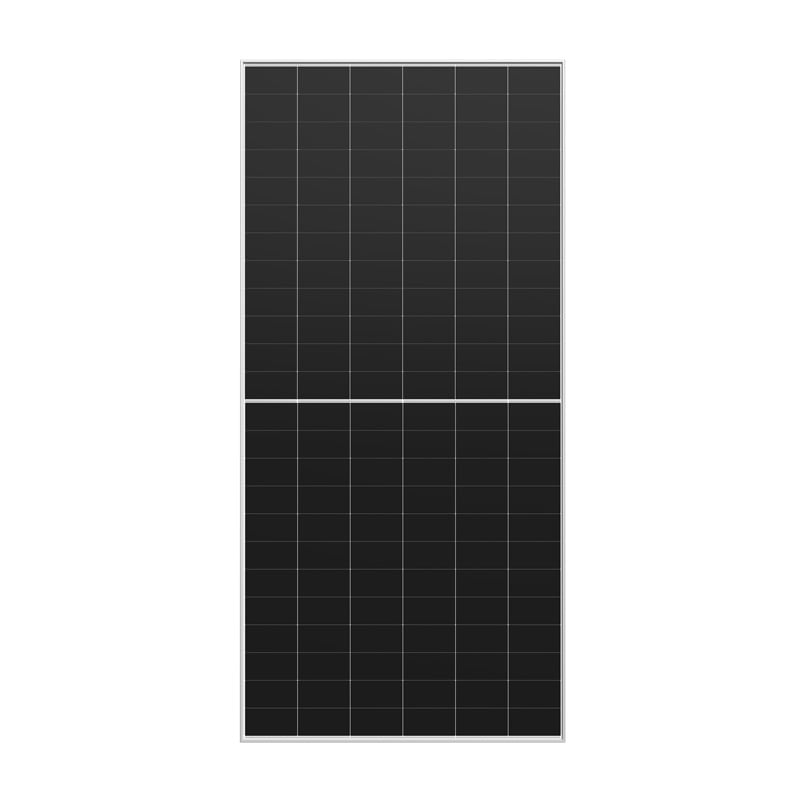

LONGi EcoLife LR7-54HJD 505W
Discover the LONGi EcoLife LR7-54HJD 505W solar panel with high efficiency and up to 510W power output for optimal energy solutions.
- Maximum Power (Pmax): 505W
- Open Circuit Voltage (Voc): 41.45V
422 AEDincl. VAT
Features
Overview
The LONGi EcoLife LR7-54HJD 505W solar panel offers exceptional efficiency and performance, making it an ideal choice for diverse energy needs. With a maximum power output of 505W, this module ensures reliable and sustainable energy production.
Full specifications
Electrical
| Maximum Power (Pmax) | 505W |
|---|---|
| Open Circuit Voltage (Voc) | 41.45V |
| Short Circuit Current (Isc) | 15.41A |
| Voltage at Maximum Power (Vmpp) | 34.27V |
| Current at Maximum Power (Impp) | 14.74A |
| Module Efficiency | 24.7% |
Mechanical
| Dimensions (L×W×H) | 1800×1134×30mm |
|---|---|
| Weight | 23.5kg |
| Frame Material | Black anodized aluminum alloy frame |
| Glass | 2.0mm semi-tempered glass + 1.6mm semi-tempered glass |
Environmental
| Temperature Coefficient of Isc | +0.050%/°C |
|---|---|
| Temperature Coefficient of Voc | -0.210%/°C |
| Temperature Coefficient of Pmax | -0.240%/°C |
| Front Side Maximum Static Loading | 6000Pa |
| Rear Side Maximum Static Loading | 3600Pa |
| Hailstone Test | 25mm Hailstone at the speed of 23m/s |
| Operational Temperature | -40°C to +85°C |
| Maximum System Voltage | DC1500V (IEC) |
| Maximum Series Fuse Rating | 30A |
| Nominal Operating Cell Temperature | 45±2°C |
Certifications
- IEC C Class
