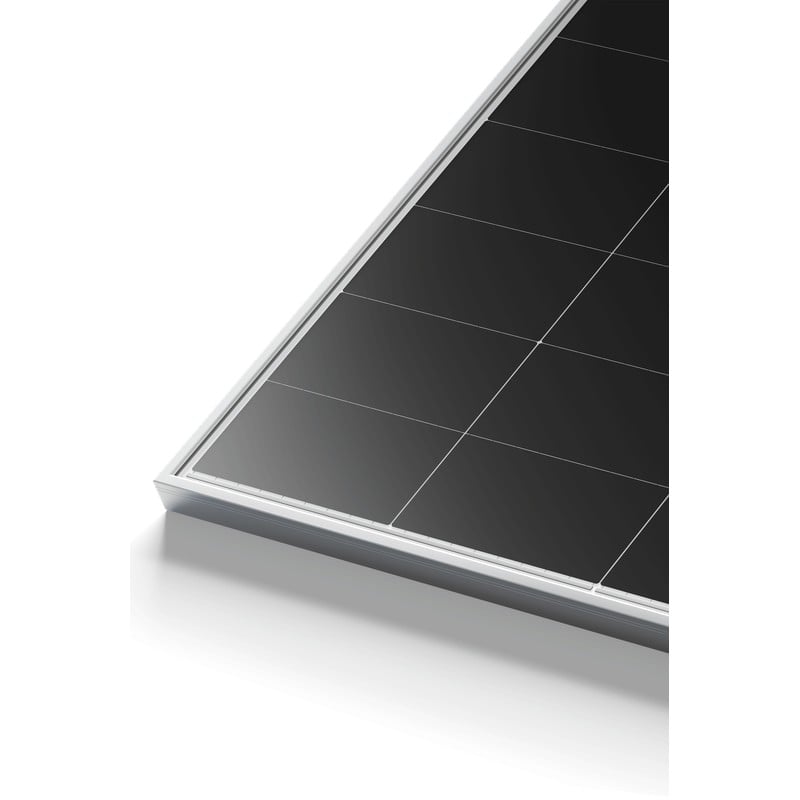

LONGi Solar Hi-MO 9 HydroClear LR8-66HYD 640W

LONGi Hi-MO 9 HydroClear LR8-66HYD 640W

Discover the LONGi Hi-MO 9 HydroClear LR8-66HYD 640W solar panel with 635W power output and high efficiency for optimal energy solutions.

  • Maximum Power (Pmax): 640W
  • Open Circuit Voltage (Voc): 49.67V
346 AEDincl. VAT
Full Specifications

Features

Innovative anti-dust design

High-blocking encapsulation structural design

Low maintenance cost

TaiRay wafer&BC technology

High mechanical load strength of

High mechanical load strength of 5400Pa/2400Pa

Overview

The LONGi Hi-MO 9 HydroClear LR8-66HYD 640W solar panel is engineered to deliver exceptional performance with a maximum power output of 640W. Its advanced design ensures high efficiency and reliability, making it an ideal choice for diverse energy needs.

Full specifications

Electrical

Maximum Power (Pmax)640W
Open Circuit Voltage (Voc)49.67V
Short Circuit Current (Isc)13.36A
Maximum Power Voltage (Vmpp)40.78V
Maximum Power Current (Impp)15.59A
Module Efficiency23.7%

Mechanical

Cell Orientation132 (6×22)
Junction BoxIP68, three diodes
Output Cable4mm², +400, -200mm/+1400mm length can be customized
GlassDual glass, 2.0+2.0mm heat strengthened glass
FrameAnodized aluminum alloy frame
Weight33.5kg
Dimension2382×1134×30mm

Environmental

Temperature Coefficient of Isc+0.050%/°C
Temperature Coefficient of Voc-0.200%/°C
Temperature Coefficient of Pmax-0.260%/°C
Front Side Maximum Static Loading5400Pa
Rear Side Maximum Static Loading2400Pa
Hailstone Test25mm Hailstone at the speed of 23m/s
Operational Temperature-40°C to +85°C
Power Output Tolerance0~3%
Maximum System VoltageDC1500V (IEC/UL)
Maximum Series Fuse Rating35A
Nominal Operating Cell Temperature45±2°C
Protection ClassClass II
Bifaciality75±5%
Fire RatingUL Type 29, IEC Class C

Certifications

  • IEC 61215
  • IEC 61730
  • UL 1703
  • UL 61730
  • ISO9001:2015
  • ISO14001:2015
  • ISO45001:2018
  • IEC62941
